Instrumentation 0.9 Output Power Pure Sine Wave Ups Black 980 - 7390KG

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SOROTEC
সাক্ষ্যদান: CE,ROHS,ISO9000
Model Number: GP9335C 10-120KVA
প্রদান:
Minimum Order Quantity: 50
Packaging Details: Carton, export type packing or according to your requirement.
Delivery Time: According to your order quantity or your requirement
Supply Ability: 500 Piece/Pieces per Month

বিস্তারিত তথ্য

ওজন: NW: 980 ~ 7390KG আউটপুট বিভব: 360 / 384VAC
درجه: অন ​​লাইন প্রয়োগ: ইনস্ট্রুমেন্টেশন, ব্যক্তিগত কম্পিউটার, নেটওয়ার্ক
রেটেড ফ্রিকোয়েন্সি: 50 60 হার্টজ ফাইলের আকার (ওয়াট * ডি * এইচ): 1250 * 855 * 1900MM
ওজন (কেজি): এনডাব্লু: 980 ~ 7390KG রং: কালো
লক্ষণীয় করা:

pure sine wave ups

,

uninterruptable power supply

পণ্যের বর্ণনা

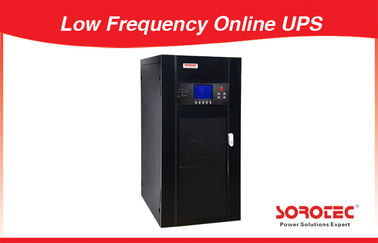

10-120KVA Low Frequency Online Ups 0.9 Output Power Factor Three Phase Online Ups



Key Features:
1.0.9 output power factor,UP to 6 units in parallel



2.6-inch extra large LCD that display 12 language( English/Russian/Spanish/French^)


3.The efficiency of the machine is more than 94%, and reach 98% in ECO mode.


4.6th generation DSP control


5.Intelligent battery management: Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.


6.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions


7.Extra wide input voltage and frequency range make it adapt to severe power grid environment


8.Standard input/output filter improves the system EMC performance


9.Intelligent battery management maintains battery automatically to prolong the battery life





Applications:

Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.







Product Descriptions of 40Kva Online Ups



Model GP9335C 10-120KVA
6p 12p 6p 12p 6p 12p 6p 12p 6p 12p 12P 12P 12P
Rated Nominal

10KVA

/9KW

20KVA /18KW 30KVA /27KW 40KVA /36KW 60KVA /54KW

80KVA

/72KW

100KVA

/90KW

120KVA

/108KW

Rated input voltage 380/400/415VAC 3-phase 4-wire
Rated frequency 50/60HZ
Input parameters
Input voltage range ±25%
Input frequency range 45Hz~65Hz
Input soft start function 0-100%   5-300settable
Input power factor >0.8
Input harmonic current (THDi) <20%
Bypass
Bypass voltage range -20%~+15%
Bypass frequency range 50/60HZ±10%
Output parameters
Inverter output voltage 380/400/415VAC 3-phase 4-wire
Voltage stability ±1%(Steady status),±3%(Transient status)
Frequency 50/60Hz
   Mains power synchronization window ±5%
Actually measured frequency accuracy (internal clock) 50/60Hz±0.05Hz
Output power factor 0.9(Output 90kW per 100kVA)
Transient response time <5ms
Inverter overload capability At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s
Short circuit current from inverter 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
DC Voltage 360/384/432/480VDC
Maximum Bypass capability 1000% for 100ms
Phase shift With 100% balanced load With 100% balanced load <1%
characteristic With 100% imbalance load With 100% balanced load <1%
Total harmonic 100% linear load 100% linear load <1%
Distortion(THDv) 100% non-linear load 100% non-linear load <3%
System efficiency (full load) Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability 1%
DC ripple voltage ≤1%
Operating environment
Operating temperature range 0~40°C
Storage temperature -25~70°C(Without battery)
Relative humidity 0~95% No condensation
Maximum Operating Height ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m
Noise (1m) 58-68dB
Protection level IP20
Standard Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3
Physical Parameters
Weight(kg) 980 1420 1200 1750 1350 2000 1600 2200 2100 2750 3690 6390 7390
Dimension(WxDxh)mm

  900

*855

*1900

1250*855

  *1900

1640

*855

*1900

1250

*855

*1900

1640*855

  *1900

2280

*855

*1900

2835

*1000

*1950

3955

*1090

*1950





          APPLICATION OF OUR PRODUCT

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







                          COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.







                          WHY CHOOSE US ?



1,QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.





FAQ

1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

  ...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

  ...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the

customer enjoy the most perfect after- sales service.

  ...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.

  ...................................................................................................................................................

2,Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
