Mppt 60A 3 Phase Inverters Home Solar Energy Inverter Pure Sine Wave

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SOROTEC
সাক্ষ্যদান: CE,ROHS,ISO9000
Model Number: SSP3118C 1 - 5KVA
প্রদান:
Minimum Order Quantity: 5PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

বিস্তারিত তথ্য

ভোল্টেজ, বৈদ্যুতিক একক বিশেষ: 230VAC বাছাইযোগ্য ভোল্টেজ রেঞ্জ: 170-280VAC (ব্যক্তিগত কম্পিউটারের জন্য)
কম্পাঙ্ক সীমা: 50 হার্জেড / 60 হার্জেড (অটো সেন্সিং) সময়-এর স্থানান্তরণের: 10 মিম (ব্যক্তিগত কম্পিউটারের জন্য) 20 মিম (হোম অ্যাপ্লায়েন্সের জন্য)
তরঙ্গাকৃতি: খাঁটি সাইন ওয়েভ অপারেটিং তাপমাত্রা: 0 ℃ -55 ℃
সংগ্রহস্থল তাপমাত্রা: -15 ℃ -60 ℃ এসি ভোল্টেজ নিয়ন্ত্রণ (ব্যাট। মোড): 230VAC ± 5%
বাতাসের: 5% থেকে 95% আপেক্ষিক আর্দ্রতা (নন-কনডেনসিং) নেট ওজন (কেজি): 6.8 ~ 11KG
লক্ষণীয় করা:

solar power inverter for home

,

home power inverter

পণ্যের বর্ণনা

Off-grid Mppt 60A Solar Charge Controller 3 Phase Inverters Home





Key Features:

1. Pure sine wave inverter

2. Cold start function

3. Remote panel available

4. Auto restart while AC is recovering

5. Overload and short circuit protection

6. Compatible to mains voltage or generator power

7. Selectable charging current based on applications

8. Configurable AC/Solar input priority via LCD setting

9. Built-in MPPT/PWM (Optional) solar charge controller

10. Smart battery charger design for optimized battery performance

11. Parallel operation with up to 6 units only available for 4KVA/5KVA

12. Selectable input voltage range for home appliances and personal computers







Full protection:

Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.







Applications:

Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.

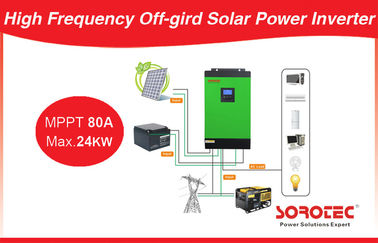

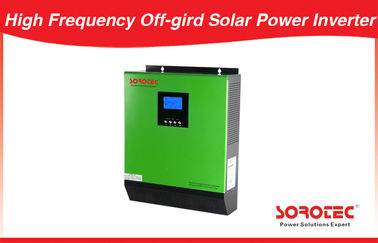

PRODUCT SHOW

Mppt 60A 3 Phase Inverters Home Solar Energy Inverter Pure Sine Wave 0







Technical Specification:

MODEL SSP3118C 1K-2425 SSP3118C-2K 2425 SSP3118C 2K-2460 SSP3118C 3K-2425 SSP3118C 3K-2460 SSP3118C 4K-4880 SSP3118C 5K-4880
Rated Power 1000VA/800W 2000VA/1600W 2000VA/1600W 3000VA/2400W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% - 93% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 24VDC 24 VDC 24 VDC 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 27 VDC 27 VDC 27 VDC 27 VDC 54 VDC
Overcharge Protection 31 VDC 31 VDC 31 VDC 31 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 1500W 600W 1500W 4000W
MPPT Range @ Operating Voltage 30VDC ~ 66VDC 30VDC ~ 66VDC 30VDC ~ 115VDC 30VDC ~ 66VDC 30VDC ~ 115VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145VDC 75VDC 145VDC 145 VDC
Maximum Solar Charge Current 25A 25A 60A 25A 60A 80A
Maximum AC Charge Current 20A 30A 30A 30A 30A 60 A
Maximum Charge Current 25A 30A 60A 30A 60A 140A
AC charger and solar charger can't work at the same time.
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 6.8 7.0 7.4 11
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C







APPLICATION OF OUR PRODUCT



1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip







COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.







WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
