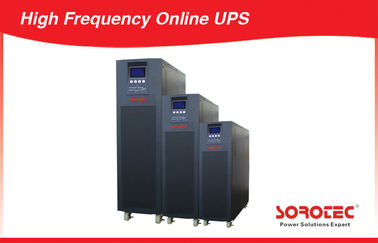

Performance Online UPS uninterruptable power supply , uninterrupted power source / supplies

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SOROTEC /OEM
সাক্ষ্যদান: CE,ROHS,RSO9000
Model Number: HP9335C PLUS 10-30KVA
প্রদান:
Minimum Order Quantity: 1pcs
মূল্য: 1-10000 USD
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30 days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month

বিস্তারিত তথ্য

পণ্যের নাম: উচ্চ ফ্রিকোয়েন্সি অনলাইন ইউপিএস ধারণক্ষমতা: 10-30KVA
আউটপুট পাওয়ার ফ্যাক্টর: 0.9 তরঙ্গাকৃতি: খাঁটি সাইন ওয়েভ
ট্রান্সফরমলেস ইউপিএস: "হ্যাঁ" ব্যাটারি বিভব: 12V / 9AH
সময়-এর স্থানান্তরণের: 0ms ফেজ: তিন ধাপে
প্রয়োগ: ব্যক্তিগত কম্পিউটার, সার্ভারস, টেলিকো, ডেটা সেন্টার সেবা: ই এম / ওডিএম উত্পাদন
লক্ষণীয় করা:

ups uninterruptible power supply

,

high frequency ups

পণ্যের বর্ণনা

Performance Online UPS uninterruptable power supply , uninterrupted power source / supplies



1. True double-conversion

2. DSP technology guarantees high performance

3. Output power factor 0.9

4. Wide input voltage range (110-300 VAC)

5. Active power factor correction in all phases

6. 50Hz/60Hz frequency converter mode

7. ECO mode operation for energy saving

8. Accepts dual-mains inputs

9. Emergency power off function (EPO)

10. Generator compatible

11. SNMP+USB+RS-232 multiple communications

12. 3-stage extendable charging design for optimized battery performance

13. Adjustable battery numbers

14. Maintenance bypass available

15. Optional N+X parallel redundancy

16. Optional isolation transformer offers full isolation and complete common mode noise rejection




MODEL HP9335C Plus 10-30KVA
10K 10K-XL 15K 15K-XL 20K 20K-XL 30K 30K-XL
CAPACITY 10KVA / 9KW 15KVA / 13.5KW 20KVA / 18KW 30KVA / 27KW
PHASE 3 Phase with Neutral
INPUT
Voltage Range Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load
Low Line Comeback Low Line Loss Voltage + 10V
High Line Loss 300 VAC(Ph-N) ± 3 %
High Line Comeback High Line Loss Voltage - 10V
Phase Three phase with ground
Power Factor ≥ 0.99 at 100% Load
OUTPUT
Output voltage 208/220/230/240VAC(Ph-N)
AC Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload AC mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec
Battery mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec
Current Crest Ratio 3:1 max
Harmonic Distortion ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load
Transfer Time Line←→Battery 0 ms
Inverte←→Bypass 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)
Line←→ECO <10 ms
EFFICIENCY
AC mode > 89% > 89% > 89% > 90%
Battery Mode > 86% > 88% > 87% > 89%
BATTERY
Standard Model Type







12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 20(18-20 adjustable) 2 x 20(18-20 adjustable) 2 x 20(18-20 adjustable) 3 x 20(18-20 adjustable)
Recharge Time 9 hours recover to 90% capacity
Charging Current 1.0 A ± 10% (max.) 2.0 A ± 10% (max.) 2.0 A ± 10% (max.) 4.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
Long-run Model Type Depending on applications
Numbers 18-20
Charging Current 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 4.0 A ± 10% (max.) 12.0 A ± 10% (max.)
Charging Voltage 273 VDC ± 1%
PHYSICAL
Standard Model Dimension,DxWxH(mm) 832 X250X894 832 X250X1275
Long-run Model Dimension,DxWxH(mm) 609 X250X768 832 X250X828
ENVIRONMENT
Operation Temperature 0 ~ 40°C (the battery life will down when > 25°C)
Operation Humidity <95 % and non-condensing
Operation Altitude <1000m
Acoustic Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
USB Power management from SNMP manager and web browser
