Home Use AC Output Pure Sine Wave Solar Power Inverters 4000VA 3200W 48V

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: SOROTEC /OEM
সাক্ষ্যদান: CE,ROHS,RSO9000
Model Number: SSP3118C1 1-5KVA
প্রদান:
Minimum Order Quantity: 1pcs
মূল্য: 150-300 USD Per Unit
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month

বিস্তারিত তথ্য

পণ্যের নাম: গ্রিড সৌর শক্তি বৈদ্যুতিন সংকেতের মেরু বদল درجه: ডিএ / এসি ইনভার্টারস
আউটপুট পাওয়ার ফ্যাক্টর: 0.8 ইনপুট বিভব: 230VAC
আউটপুট বিভব: 220 / 230V সুরক্ষা কার্য: shortcircuit, জমিদার
বিল্ট-ইন: পিডব্লিউএম সোলার চার্জ কন্ট্রোলার প্রয়োগ: হোম ব্যবহার
আকার: 120 * 295 * 468mm ওজন: 9.8Kg
লক্ষণীয় করা:

solar power inverter for home

,

solar energy inverter

পণ্যের বর্ণনা

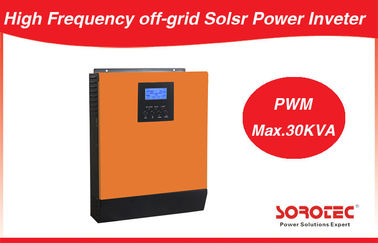

Home Use AC Output Pure Sine Wave Solar Power Inverters 4000VA 3200W 48V





Product Description:

This  is a high frequency Off-grid type Solar Power Inverter built-in PWM Solar Charge Controller. 6pcs (4kva/5kva) Solar Inverter for capacity expansion ,  Various Charging Priority Modes and Output Priorities available . It can provide reliable long backup time ac power supply for home and office equipment such as:Fridge,Air-conditional,TV,Computer .etc



Key Features:

  • Built-in PWM solar charge controller
  • Pure sine wave inverter
  • Cold start function
  • Remote panel available
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Compatible to mains voltage or generator power
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Smart battery charger design for optimized battery performance
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Selectable input voltage range for home appliances and personal computers



Full protection:

Protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.



Applications:

Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.





SOROTEC SSP3118C1  1-5kva Series High Frequency Pure Sine Wave Solar Inverter

MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C















Home Use AC Output Pure Sine Wave Solar Power Inverters 4000VA 3200W 48V 0

Home Use AC Output Pure Sine Wave Solar Power Inverters 4000VA 3200W 48V 1

Why Choose US?

1,QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2,Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

Home Use AC Output Pure Sine Wave Solar Power Inverters 4000VA 3200W 48V 2

FAQ

1.How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.



.......................................................................................................................................................................................................................................



2.How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.



........................................................................................................................................................................................................................................



3.How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.



.....................................................................................................................................................................................................................................



4.How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:



Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)



.......................................................................................................................................................................................................................................
