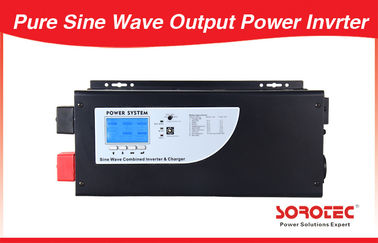

Home Off Grid Solar Inverter Rack tower long backup time 500VA - 2000VA

Minimum Order Quantity :	30 PCS	Packaging Details :	Standard Exported Cartons and Pallets
Delivery Time :	Within 15-30days after receiving your 30% TT deposit	Payment Terms :	30% TT in advance, the balance before shipping
Supply Ability :	10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Place of Origin:	Guangdong (Mainland), China	পরিচিতিমুলক নাম:	SOROTEC
সাক্ষ্যদান:	CE,ROHS,ISO9000,ISO14000	Model Number:	IG3110C 500 - 2000VA

বিস্তারিত তথ্য
নামমাত্র বিভব:	220/230 / 240VAC	নামমাত্র কম্পাঙ্ক:	50 60 হার্টজ
বিভব সীমা:	176VAC-280VAC (± 3VAC)	কম্পাঙ্ক সীমা:	50 60 হার্টজ
ভোল্টেজ প্রবিধান:	220/230 / 240VAC ± 2%	ফ্রিকোয়েন্সি রেগুলেশন:	50 / 60Hz + + 0.1Hz
তরঙ্গের আকারে:	সাইন ওয়েভ পরিবর্তিত	স্যুইচ সময়:	স্ট্যান্ডার্ড 2 ～ 4ms টিপিকাল 6ms ms
মাত্রা: WXDXH মিমি:	224 × 225 × 80
বিশেষভাবে তুলে ধরা:	solar power inverter for home , home power inverter

পণ্যের বর্ণনা

Home Off Grid Solar Inverter Rack tower long backup time 500VA - 2000VA

Key Features:

■Optional input voltage range.

■Full automatic and silent operation.

■Rack-Tower design.

■Automatic charging.

■Built-in with 10Amp or 20Amp optional charger for up to 200Ah battery.

■Auto change AC-DC.

■Over-load protection.

■Automatic restart.

■Three-steps intelligent charging control to

recharging

■LCD display, audible and visual alarm

Build-in With Big Charger:

IG3110C series long back up UPS built-in with 10 or 20 Amp charger for up to 200Ah battery.

Full Protection:

Protection for low battery voltage,overload, output short circuit and over-temperature restrain surge interference,eliminate noise,protection for thunderstriking,provide the reliable power tothe home appliances

IG3110C Series Technical Specifications:

Model		IG3110C 500-2000VA
		500-12	1000-12	2000-24	1000-24
Capacity		500VA/300W	1000VA/600W	2000VA/1200W	1000VA/600W
Nominal voltage		220/230/240VAC
Nominal frequency		50/60Hz
Input
Voltage Range		176VAC-280VAC(±3VAC)
Frequency Range		50/60Hz
Output
Voltage Regulation		220/230/240VAC±2%
Frequency Regulation		50/60Hz+0.1Hz
Wave Form		Modified sine wave
Switch time		Standard 2～4ms Typical 6ms
Current
Charge Current		10A	10A	10A	6A
DC Voltage		12V	12V	24V	24V
Overcharge Protection		15V	15V	30V	30V
Display
LCD		UPS Status, Input/output Voltage and Frequency, Load, AC, battery , fault, etc
Operating Environment
Temperature		0℃～40℃
Humidity		5%～95%(<40℃, no condensation)
Storage Temperature		-25℃～55℃
Elevation Noise (within 1 metre)		Less than 1500 meter ＜45dB
Physical
Weight(KG)	Net weight	2.0	2.5	2.5	2.0
	Gross weight	2.2	2.7	2.7	2.2
Dimension:WXDXH mm		224×225×80
